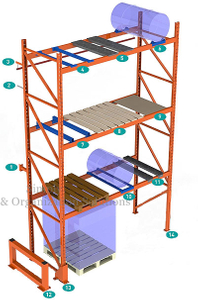

Steel storage racking arranged in single or back - to - back (double) rows. Each row offers a bay or number of bays in the down-aisle direction. Pallets are generally positioned side-by-side in the down-aisle direction at each level.
The advantage to selective pallet racking is all pallets are accessible from the facing aisle which provides high SKU storage for medium density application and low cost per storage position.
The left: main unit
The right: add-on unit
Selective Pallet Racking is the most conventional storage solutions.
|Upright||60x50, 90x70, 100x70|
|Hole Pitch||75mm, 50mm|
|Box Beam size||80x45,100x45,120x45,140x45,160x45|
|Upright Thickness||1.8/2.0/2.5/2.75/3.0 mm|
|Beam Thickness||1.8/2.0/2.5/2.75/3.0 mm|
|Frame Height||Up to 12000mm|
|Beam Length||Up to 6000mm|
|Capacity per layer||500-4000KG|
|Finsh||Powder coating (different color acceptable)|
Lateral Protection Barrier Upright Protector Wire Decking Row Spacer
CAD drawing would be provided and it's base on your pallet racking request. Meanwhile you should provide us specification regarding:
Length of rack
Depth of rack
Height of rack
Level of rack
Loading capacity of per pallet
Bubble film package to avoid the goods being damage during shipment.
